Automated Filter Press Equipment
Advanced Industrial Solid-Liquid Separation Technology
The automatic filter press is an advanced, fully automated solid-liquid separation system that integrates mechanical, electrical, and hydraulic functions. It uses PLC programming to execute a fully automatic operational process, including feeding, filtration, cake washing (optional), secondary squeezing (optional), cake discharge, and cloth cleaning. As one of the most efficient dewatering systems available, it plays a crucial role across various industries
Automated Filter Press Equipment offers industries an efficient, reliable, and cost-effective solution for solid-liquid separation. With advanced technology and automation systems, these presses streamline operations, reduce labor costs, and ensure high-quality output.

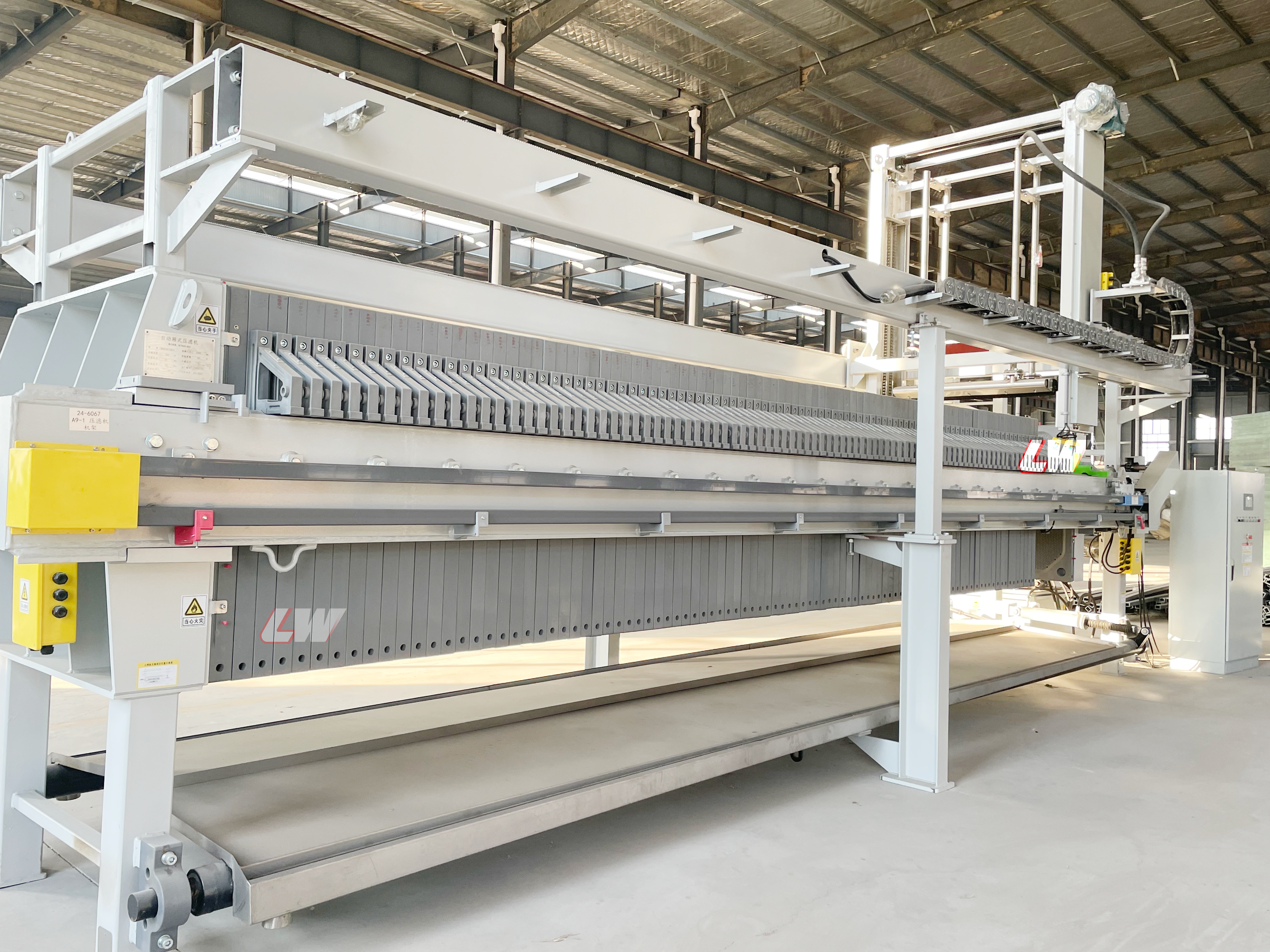

The Loway Automated Filter Press redefines industrial dewatering through end-to-end autonomous operation, combining robotic plate shifting, self-cleaning systems, and real-time process optimization. Engineered for continuous 24/7 production environments requiring maximum throughput with minimal human intervention.
Features of Advanced Automated Filter Presses
✅Fully Automated Operation
- Automatic feed pumping with pressure monitoring
- Programmed filter plate shifting and cake discharge
- Self-cleaning systems for filter cloths
- Automated cycle repetition without operator intervention
✅Safety Enhancements
- Pressure relief systems
- Emergency shutdown capabilities
- Enclosed operation to prevent operator exposure
- Automatic fault detection and reporting
✅Efficiency Optimizations
- Variable pressure profiles throughout the cycle
- Adaptive control based on slurry characteristics
- Energy-saving modes during standby
- Optimized cycle times based on dewatering requirements
✅Data Integration
- Real-time performance monitoring
- Integration with plant control systems
- Remote operation capabilities
- Data logging for process optimization and troubleshooting
Technical Specifications
| Parameter | Specification |
|---|---|
| Filtration Area | 10 m² to 500 m² |
| Plate Size | 500 mm x 500 mm to 2000 mm x 2000 mm |
| Operating Pressure | Up to 16 bar (232 psi) |
| Plate Material | Polypropylene, Stainless Steel, or Composite |
| Frame Material | Carbon Steel or Stainless Steel |
| Number of Plates | 20 to 200 plates |
| Cake Thickness | 20 mm to 50 mm |
| Feed Pump Pressure | 6 bar to 16 bar |
| Moisture Content | 15% to 30% (depending on material) |
| Power Supply | 380V/50Hz or Customizable |
| Weight | 2,500 kg to 25,000 kg (depending on size) |
| Automation Level | PLC-controlled, fully or semi-automated |
| Remote Monitoring | Real-time data tracking and remote control |
Working Process of Automatic Filter Press
The automatic filter press system consists of multiple interconnected stages, each designed to ensure effective and consistent separation of solids and liquids.
Plate Closing: The hydraulic system applies a pressing force of 0–30 MPa to tightly seal the filter plates.
Slurry Feeding: A high-pressure plunger pump injects slurry into the filter chambers at 0.6–2.0 MPa.
Filtration: Liquid passes through the filter cloth, while solid particles form a filter cake with a typical thickness of 25–50 mm.
Membrane Squeezing (Optional): In membrane filter presses, compressed air or water expands an internal elastic diaphragm to achieve secondary squeezing, significantly lowering moisture content.
Automatic Discharge: A plate shifting system automatically opens the filter plates, allowing cakes to fall off by gravity.

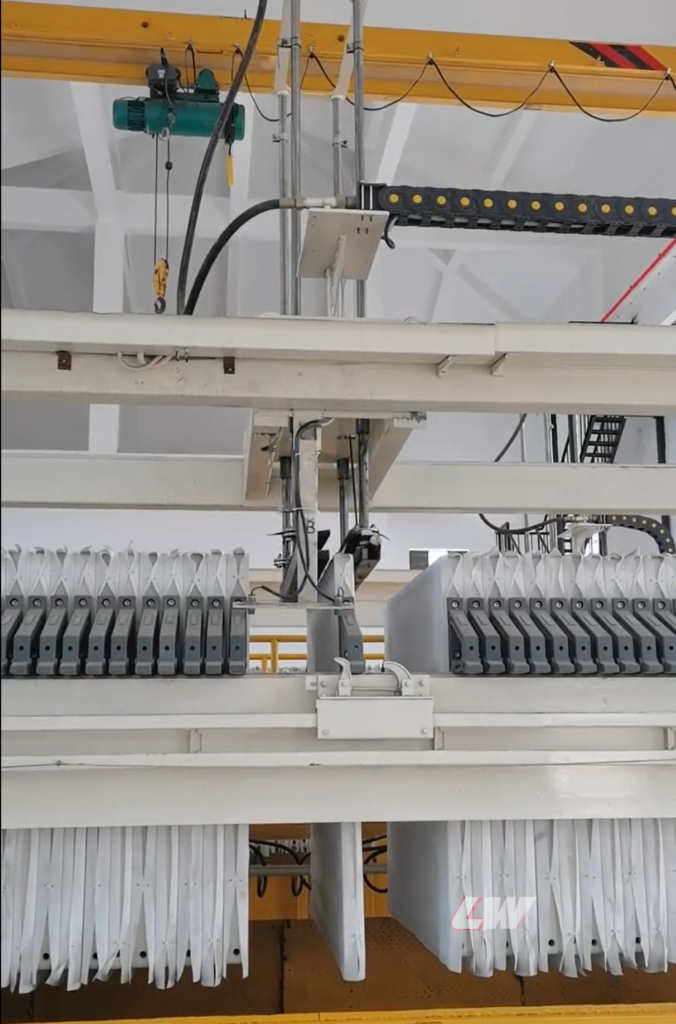

Cloth Cleaning: High-pressure spray systems remove residual particles, maintaining filtration efficiency.
Key Components and Design Features
A robust automatic filter press machine relies on its core components and smart control systems:
Filter Plate System
Made from polypropylene (PP), cast iron, or stainless steel (304/316L), these plates feature surface channels that guide filtrate out while retaining solids. In membrane models, elastic membranes perform secondary squeezing via compressed air or hydraulic pressure, reducing cake moisture below 30%.
Hydraulic System
Generates a compressive force of 0.6–20 MPa to tightly close the filter plates and activate the plate shifting mechanism. Its reliability ensures airtight filter chambers and continuous operation.
Automation Modules
Equipped with intelligent features like variable-speed plate shifting, cloth detensioning for discharge, and automated cloth washing. For example, smart plate shifters use a “slow–fast–slow” motion sequence to minimize wear and optimize discharge time.
Pressing Method
| Type | Pressing Mechanism | Key Attributes |
|---|---|---|
| Hydraulic Automatic | Adjustable hydraulic pressure (15–30 MPa) | Most common type, high stability |
| Mechanical Automatic | Screw-based pressing | Low-maintenance, ideal for small systems under 50㎡ |
Material
| Material Type | Corrosion Resistance | Max Working Temp | Application Areas |
|---|---|---|---|
| Cast Iron | Moderate | ≤120°C | Mining, construction |
| 304/316L SS | Strong | ≤150°C | Food, pharmaceutical |
| PP/PE Plastics | Excellent | ≤80°C | Electroplating, acid treatment |
| Rubber Coated | Non-stick surface | ≤100°C | Sticky or viscous materials |
Intelligent Control Systems
Three-Tier Control Architecture
Modern PLC control systems for filter presses incorporate:
- Adaptive Pressure Curve Regulation: Automatically adjusts compression based on material characteristics
- AI-Powered Filter Cloth Monitoring: Predictive maintenance alerts for cloth blockage prevention
- Remote Mobile App Control: Start/stop operations and monitoring via smartphone interface
- Digital Twin Energy Analysis: Real-time energy consumption optimization and reporting
Key Selection of Loway Automated Filter Press
Choosing the right automatic filter press system depends on several factors:
1. Slurry Characteristics
Solid content: For <10% solids, chamber filter presses are suitable. For >20%, membrane filter presses are more efficient.
Corrosiveness: Acidic or alkaline materials require PP or stainless-steel filter plates.
2. Processing Capacity
Use the formula below to determine the required filtration area:
Filtration Area (㎡) = [Daily Flow (m³/day) × Solid Content] ÷ [Filtration Rate (1–3 m³/(㎡·h)) × Working Hours]
3. Automation Level
For large production lines, consider add-ons like:
Auto plate shifting
Filter cloth washing system
Smart parameter optimization
Types of Automatic Filter Press Systems
Automatic filter presses are available in various designs tailored to application needs. Each configuration comes with its own structural benefits and industry-specific suitability.
Type | Structural Features | Key Advantages | Primary Applications |
Alternating filter plates and frames with cloth between | Excellent cake washing efficiency | Pharmaceutical industry, activated carbon filtration, high-viscosity materials | |
Hollow plates with bilateral recesses forming filter chambers | Large filtration area (up to 1200㎡) | High-pressure applications (0.3-3MPa), electroplating sludge treatment | |
Elastic membranes between plates and cloth for secondary pressing | Achieves 20-30% moisture content, reduces disposal costs | Chemical processing, mining, difficult dewatering applications | |
Continuous operation with three-stage process: gravity, wedge, compression | High automation, large throughput capacity | Municipal wastewater, textile industry sludge treatment | |
Continuous high-efficiency dewatering | Compact and energy-saving | Oilfield drilling fluids, sludge with high oil content |
Industrial Applications and Case Studies
Municipal Sludge Dewatering
Hong Kong’s implementation of high-strength membrane filter presses reduced sludge moisture content from 82% to 40%, achieving annual disposal cost savings of $450,000. The 400㎡ fully automatic system processes 1.5 million tons of wastewater annually, meeting Class A discharge standards.
Industrial Wastewater Processing
Filter press wastewater treatment applications include coating wastewater processing, where paint residue moisture content reduces to below 30%, enabling hazardous waste minimization. Electroplating sludge treatment utilizes membrane filter presses with high-pressure pressing and acid washing processes to achieve compliant heavy metal discharge levels.
Lithium Extraction
Filter presses are used in lithium brine concentration, boosting lithium recovery by 20%.
Battery Material Production
In ternary cathode material processing, filter cakes with <10% moisture meet direct drying requirements.
Hydrometallurgy
Cake moisture reduced by 8% in lithium carbonate slag handling
Cyanide tailings treated with through-flow washing filter press reduce total cyanide from 70mg/L to <5mg/L for safe landfill disposal
Food Industry
In modified starch production, filter presses replace centrifuges, reducing energy use by 40% while maintaining 60% cake moisture.
Biotech Applications
A 144㎡ automatic press in a biopharmaceutical plant achieves 30% clearer filtrate, meeting GMP standards for fermentation liquids.
Pharmaceutical Wastewater
Membrane filter presses used in pharmaceutical wastewater treatment lower cake moisture below 60% for compliant landfill disposal.
Technological Trends of Automated Filter Press
Technology Developments
Smart Upgrades
IoT sensors monitor pressure and cloth clogging
AI adjusts feeding rate to prevent overpressure
Predictive maintenance reduces downtime
Green Manufacturing
Biodegradable filter cloths (e.g., PLA)
Closed-loop water systems with 90%+ reuse
Ultra-high pressure models (≥25 MPa) achieve <15% moisture
Modular & Large-Scale Systems
Units with >1000㎡ filtration area and 500 TPH capacity for mining
Skid-mounted designs for mobile deployment (e.g., oil drilling sites)
Common Questions
Have More Questions? Our technical team is ready to provide detailed, personalized guidance.
Q1: What maintenance does an automated filter press require?
Regular maintenance includes filter cloth inspection and replacement, hydraulic system checks, lubrication of moving parts, and control system updates. Modern automated presses often include predictive maintenance features that alert operators before issues arise.
Q2: How do automated filter presses improve efficiency over manual systems?
Automated systems reduce labor costs by up to 80%, increase throughput by operating continuously, optimize pressure profiles for maximum dewatering efficiency, and provide consistent results regardless of operator experience.
Q3: Can automated filter presses handle varying slurry compositions?
Yes, advanced automated presses include adaptive control systems that detect changes in slurry characteristics and adjust operating parameters accordingly, maintaining optimal performance despite feed variations.
Q4: What is the typical ROI period for upgrading to an automated filter press?
Most facilities see return on investment within 12-24 months through reduced labor costs, increased throughput, improved cake dryness (reducing disposal costs), and decreased downtime.
Q5: Are automated filter presses compatible with existing treatment systems?
Modern automated filter presses are designed with integration in mind, featuring standard communication protocols and adaptable feed systems that can connect with existing slurry conditioning, chemical dosing, and downstream handling equipment.
Q6: What is the difference between a manual and automated filter press?
An automated filter press is controlled by a system that monitors and regulates the filtration process, reducing manual labor and ensuring consistency. In contrast, manual presses require human intervention for operation and monitoring.
Q7: Are automated filter presses energy-efficient?
Yes, automated filter presses are designed to be energy-efficient by optimizing the filtration cycle and reducing waste.
How it works
We provide one-stop service of solid-liquid seporator planning, design, consultation, construction, equipment manufacturing, installation, commissioning and training. We are involved in complete sets of sludge dewatering projects for various industries.
Consultation what you need.
We do not aim to achieve maximum profit and do not reduce the quality of our products by catering to the market with low prices. We are happy to provide high quality tailor-made filtration equipment to you.
Production the filter press equipment for you

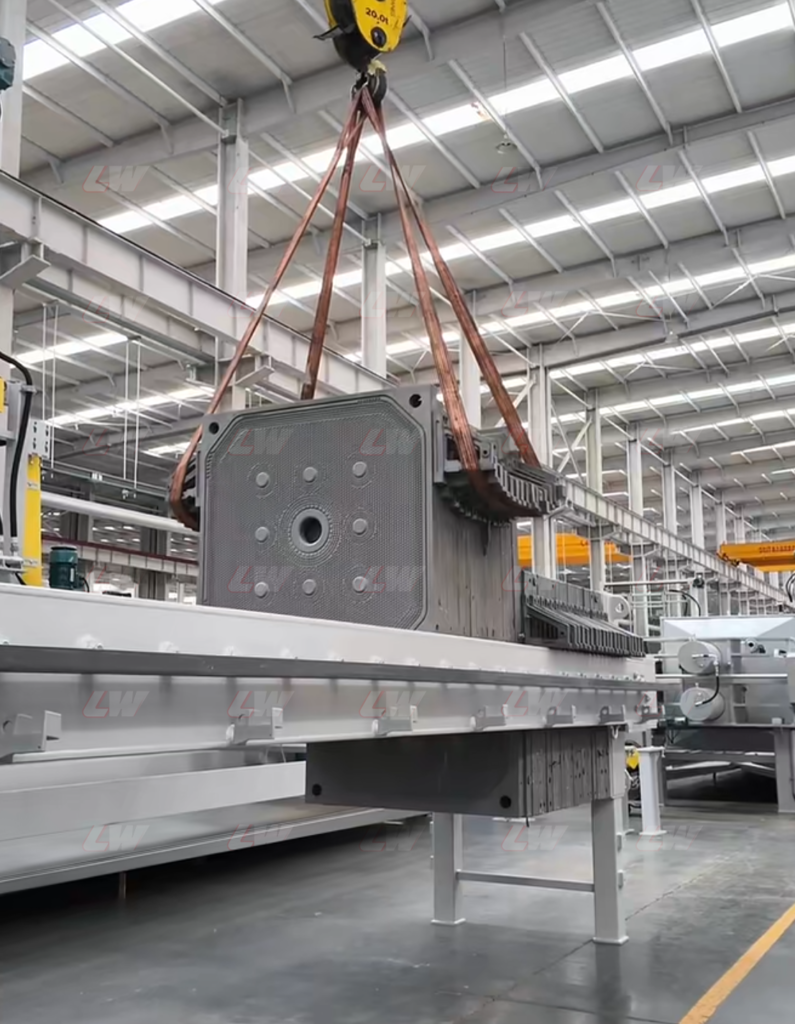

Our professional and advanced production technology, excellent manufacturing process, and perfect testing ensure that your equipment fully meets the quality acceptance standards.
